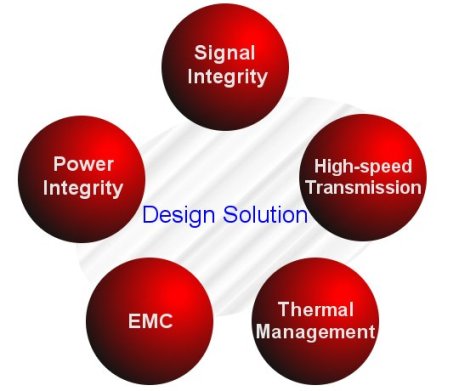

Design Solutions

We have a proven record designing boards for a wide range of fields, supporting the development of all kinds of electronic devices.

We offer one-stop solutions, including everything from board design and analysis, to board fabrication, to performance evaluation.

  • We support the development of all kinds of boards, with a proven record designing boards for a wide range of fields.
  • We offer high-quality services with a wide selection of simulations and a wealth of design expertise.
  • We consider and propose specifications taking quality, cost, and delivery into account from the design stage.
  • Our proprietary tools offer powerful support for collaboration between our customers and our deisgn team.

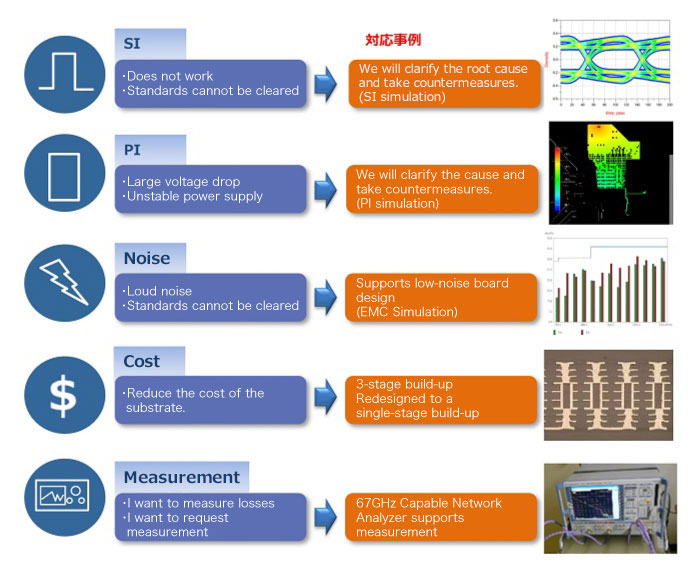

  • Signal Integrity (SI)
    We perform transmission-waveform simulation from the initial stages of design, enabling us to propose the optimum circuit constant and wiring conditions.
  • Power Integrity (PI)
    We propose optimizations for the power source and ground wiring, in order to ensure the stable operation of devices with higher speeds and lower voltage.
  • * Power integrity is a technology for ensuring the quality of power-wiring impedance, resonance characteristics, voltage drops, and the like.
  • High-speed Transmission
    We propose the optimum conditions in terms of both board characteristics and wiring design, which are vital for transmission speeds of greater than one GHz. We implement high-speed transmission, taking its impact on board characteristics and design conditions into account.
  • EMI/EMC
    We offer low-noise boards through designs that emphasize noise reduction from the initial stages of printed-board design.
  • * Electromagnetic compatibility is a technology for ensuring the noise produced by the device (electromagnetic interference, or EMI) and the susceptibility of the device to noise (electromagnetic susceptibility, or EMS).
  • Thermal Solutions
    We propose heat countermeasures when considering designs, and offer printed boards with heat countermeasures.
  • Our Tools
    Our proprietary tools offer powerful support for collaboration with our customers.
