Rigid-Flex PCB
To solve various problems related to the connection between boards with connectors.
- Achieve 2-8 multi flexible layers with controlled impedance.
We will solve the problems such as connection failure, connector contact resistance, implementation area limit, securing connector area, reduced connector installation time.
F/R 2 layers
F/R Multi-layer inner
Rigid-Flex PCB
Multilayer Rigid-flex PCB
We provide rigid-flex PCBs with flexible multi-layered inner which is difficult to realize conventional rigid PCBs or two-layer rigid-flex PCB.
Prototype example
| Item | (1) 2-layer Rigid-flex | (2) Multilayer Rigid-flex | (3) Multilayer Rigid-flex |
|---|---|---|---|
| structure | Standard structure | Multi-layer structure | Multi-layer structure |
| Layer | 8 | 16 | 10 |
| Stack-up | (3+F2+3) | 1+F2+F2+F2+F2+F2+F2+F2+1 | 1+F4+F4+1 |
To achieve both space saving and heat dissipation
- By combining a rigid-flex board, which allows for 3-dimensional design without using connectors, with a copper coin (copper inlay), a thermal path from heat-generating components is ensured and space is saved.

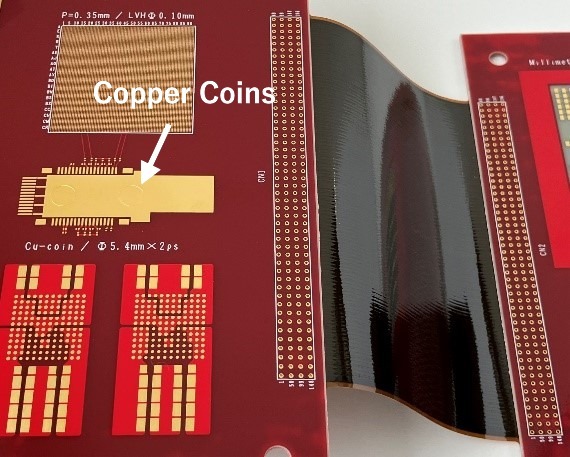

Rigid-Flex PCBs with Embedded Copper Coins
